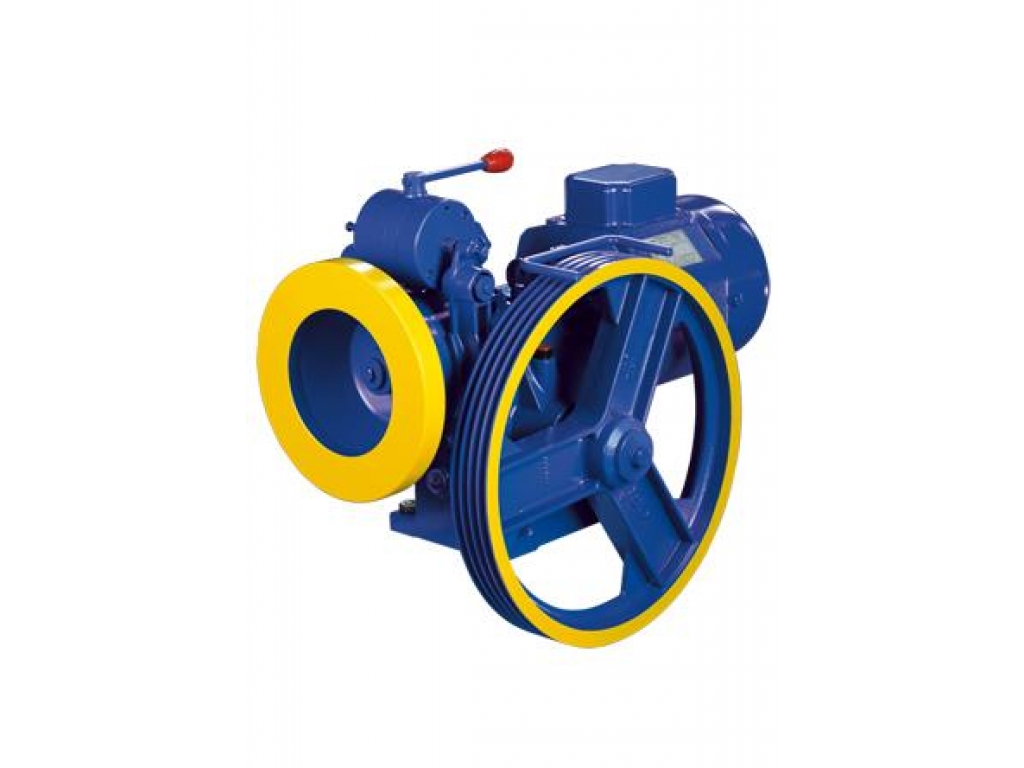

Gem camel

It is a compact and functional elevator machine engine specially designed for 3, 4 and 6 people up to 1 m / s. Motor type A4 is integrated.

GEM elevator machine motor CAMEL series, endless language special area (centrifugal bronze with nickel) and ductile spindle to drive pulley made with iron (EN-GJS-700-2 UNI EN 1563). This cantilever pulley can be provided with two fixing points, static load (2,300 Kg) and also self-supporting outside support for larger static loads (up to 2,700 Kg). Delivered with synthetic (3 liters) and standard single phase 230V-50Hz fan.

HW134" CAMEL "language box, grlt level below 60 Db (Complies with IEC 39-4; CEI EN 60034-9), with a horizontal vibration level of less than 0.7 mm / sec (compliant with IEC 34-14, CEI 2-23) and electromagnetic braking features with a double movement. language box technology is creating innovation.

Elevator machine motor can be easily disassembled from the stator, brake and drive pulley card for mounting, existing machine rooms located in places that are easily accessible and often not easily accessible
