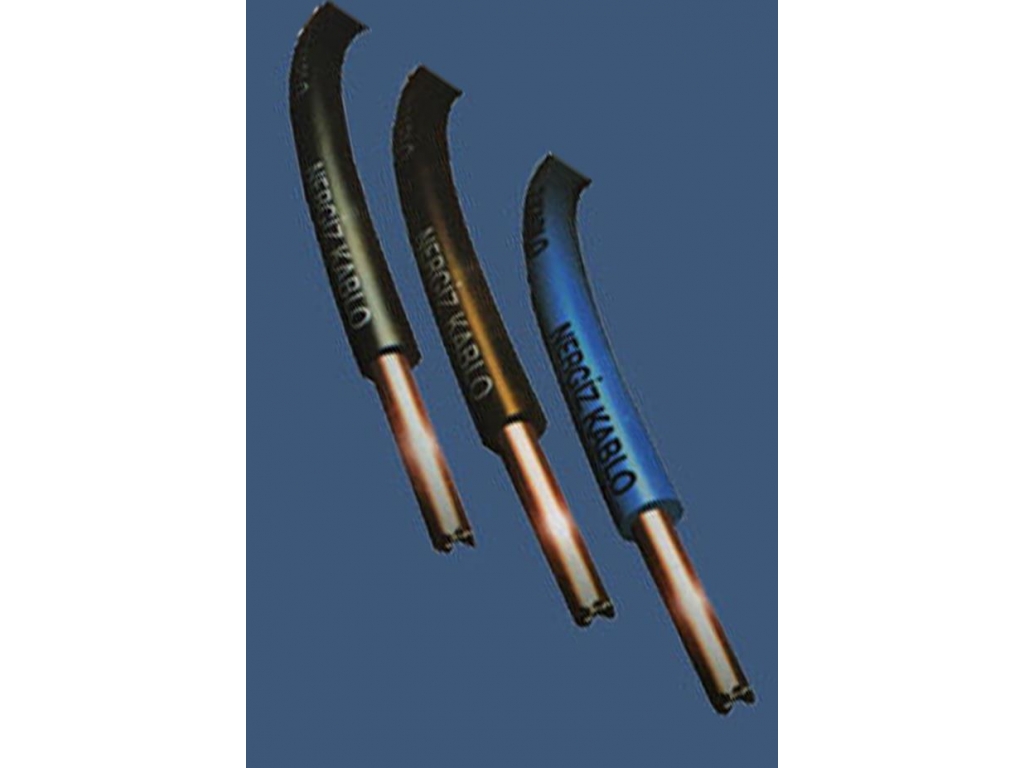

NYA Cable H05V-U, H07V-U / H07V-R

NYA Cable H05V-U, H07V-U / H07V-R

NYA cables are used in closed or dry places, distribution boards, fixed facilities / installations in pipes laid under or above the surface.
Those with a nominal cross-sectional area of 1 mm 2 gold are recommended for use only in control and signal circuits.

It is designed and manufactured in accordance with the TS 9758 / HD 21.3.S3 standard.

Properties
Yalıtım TipiPVC/TI1
Kısa Devre SıcaklığıKesit 300 mm² < 160 °C - Kesit 300 mm² > 140 °C
Yangın StandardıIEC 332-1 Kaygan Dış Yüzey
Servis Sıcaklığı70 ° C
NormalizeIEC 502
Som / Örgülü İletkenSınıf 1 ve 2 CENELEC HD 383
Anma Gerilimi300/500 V Cross Section  < 1mm² - 450/750 V Cross Section  > 1mm²
Test GerilimiU/U 300/500 V için 2000 V - U/U 450/750 V için 2500 V
